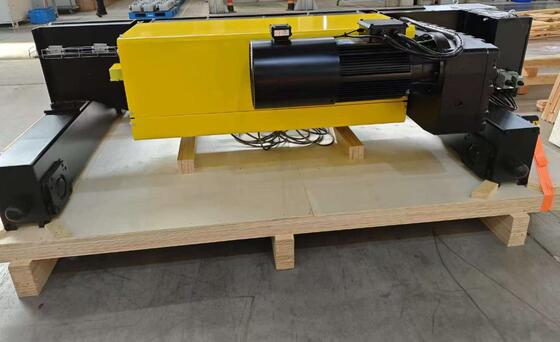

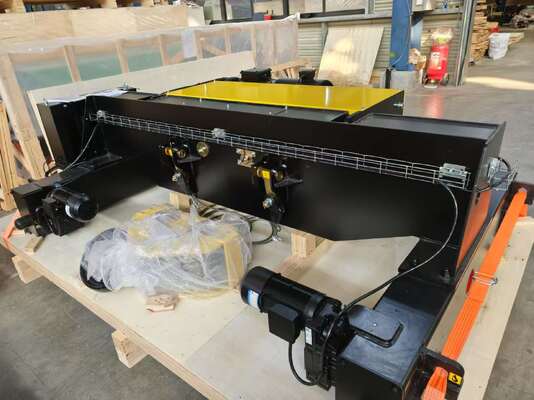

Low Headroom 5 Ton 10 Ton 15 Ton 20 Ton Remote Control European Electric Wire Rope Hoist Workshop Using
Product Introduction
The structural design of the European-style double-girder bridge crane breaks through the traditional "heavy structure, large size" model, achieving lightweight through "material optimization + structural simplification" while ensuring load-bearing stability
1. Main beam and end beam: Thin-walled profiles + modular splicing
The main girder typically adopts a box-shaped thin-walled welded structure (often made of Q355B material), with a web thickness reduced by 15%-30% compared to traditional Chinese cranes. Through finite element analysis, the stress distribution is optimized to reduce self-weight (the overall weight is 20%-40% lighter than traditional models) while ensuring torsional and bending resistance;
The end beam is constructed using standardized profile splicing (such as H-beam or square tube) rather than traditional cast steel components, resulting in lighter weight and higher assembly efficiency. Additionally, the connection between the end beam and the main beam employs high-strength bolts (rather than welding), facilitating transportation, on-site assembly, and future maintenance or modification.
2. Hoisting mechanism: The winch is integrated, replacing traditional winches
The lifting mechanism adopts European-style wire rope hoists (or chain hoists) as the core component, integrating the motor, reducer, brake, drum, and wire rope (or chain) into a compact structure (with a volume 30%-50% smaller than traditional winch lifting mechanisms);
The connection between the葫芦 and the main beam is achieved through a lightweight trolley frame, which is made of aluminum alloy or high-strength steel. The trolley frame features low wheel pressure (reducing the wheel pressure by 20%-30% compared to traditional designs), thereby decreasing the load on the main beam. This also lowers the design load requirements for factory column brackets and tracks, indirectly reducing the construction costs of the factory.
Key Specifications
| ITEM |
VALUE |
| Applicable Industries |
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining |
| After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Place of Origin |
China |
| Power Source |
Electric |
| Sling Type |
Wire Rope/chain/winch/european |
| Warranty |
1 Year |
| Machinery Test Report |
Provided |
| Video outgoing-inspection |
Provided |
| Warranty of core components |
1 Year |
| Core Components |
Motor, Bearing, Gear, Gearbox |
Advantage
- Compact structure, light weight, low wheel pressure and high overall cost performance
- Save operating costs and be low-carbon and environmentally friendly
- Selected high-quality accessories, safe and reliable, durable
- Precise positioning, efficient operation, and enhanced production efficiency
- Safe and reliable, operation monitoring(optional), maintenance-free
- Modular design with multiple options to meet the various working conditions of customers
Technical Specifications
| Capacity(t) |
Working
class |
Lifting height
(m) |
Lifting speed
(m/min) |
running velocity
(m/min) |
Rope
reeving |
|
| 10 |
M5 |
6 |
5/0.8 |
2-20 |
4/1 |
|
| 9 |
| 12 |
| 15 |
| 18 |
| 16 |
M5 |
9 |
4/0.67 |
2-20 |
4/1 |
|
|
| 12 |
| 15 |
| 18 |
|
| 32 |
M5 |
8 |
2.7/0.45 |
2-20 |
6/1 |
|
| 10 |
|
| 12 |
| 16 |
| 50 |
M5 |
6 |
0.53/3.2 |
2/20 |
12/2 |
|
| 9 |
| 12 |
| 12 |
Main Components
Company Introduction
More Products
Company Certificate
Frequently Asked Questions
Q1. What types of cranes do you offer?
A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling
Q2. How do l know which crane is suitable for my project?
A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.
Q3. How to choose the right crane?
A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.
Q4. What maintenance services do you offer?
A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.
Q5: Can you accept OEM?
A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,
Q6:What are your delivery and installation timelines?
A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.
Q7: Do you offer installation services?
A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
